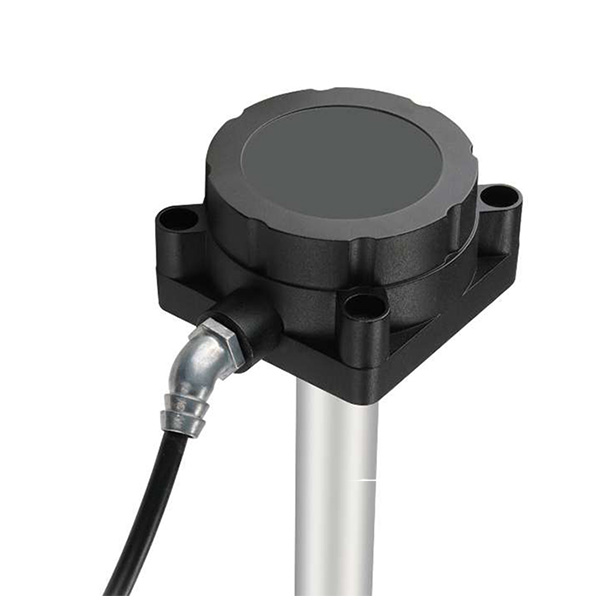

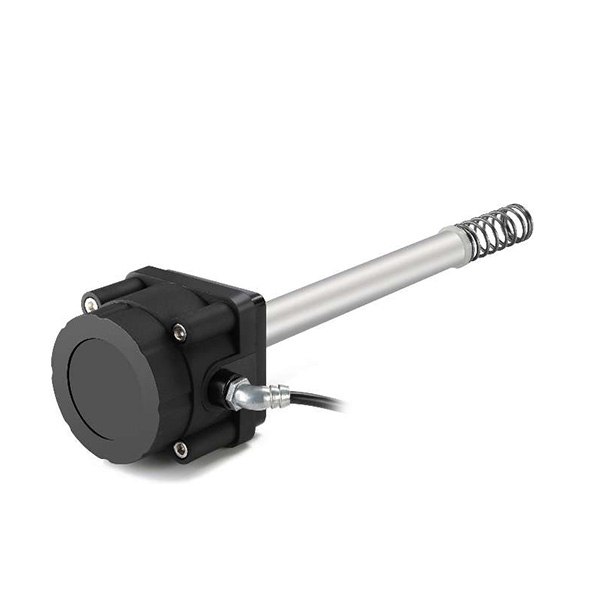

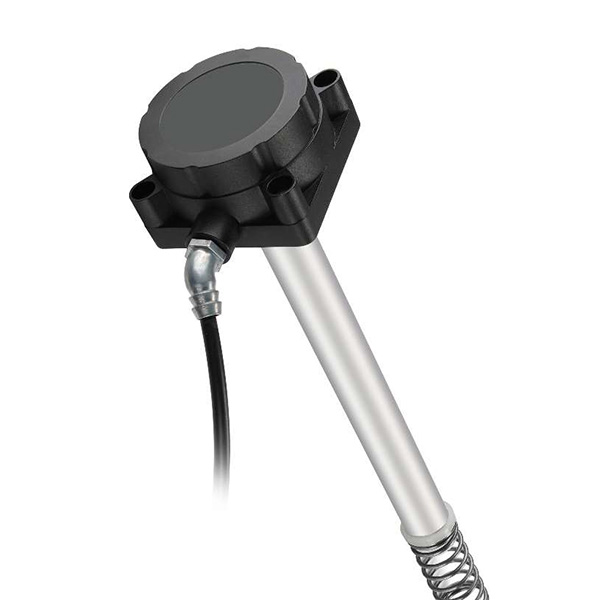

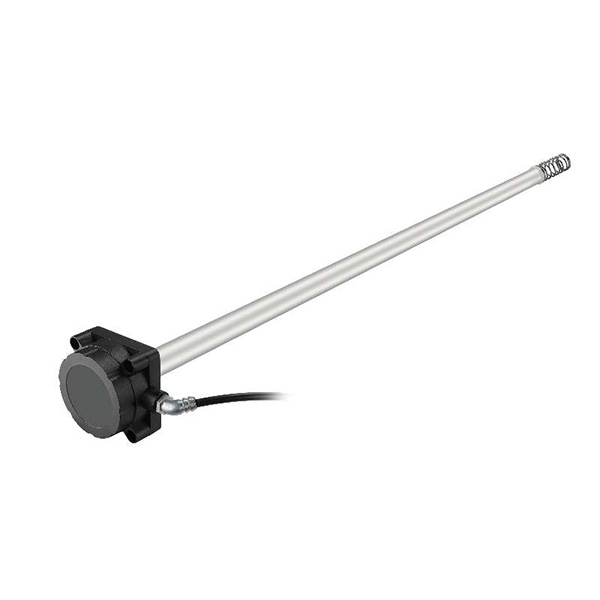

The device is designed to measure the level of liquid fuels and other non-conductive liquids in vehicle’s tanks and stationary fuel storages, applicable in different fields. The measured values will be transformed into output signal in the form of: Analog, Frequency, RS232, RS485 and transmitted to a connected external device, Under particular conditions, the device can reach a high accuracy up to 99.5%. At present, on the market there are several lines of sensor using different technologies to measure fuel level such as: magnetically operated switches (reed switches),ultrasound wave (ultrasonic sensor), capacitive sensing (capacitive sensor). Among these ones, capacitive sensing technology is considered to have highest accuracy and greatest lifespan.
1. Adjustable Can be cut in the field as per different size of tanks, automatic recognition for new length after being cut.
2. High precision Resolution < 1mm; Accuracy: 99.5%.
3. 9 ~ 37V wide range input Over-load protection, reverse-polarity protection, AI temperature compensation.
4. Wide operating temperature range from -40°C to +85°C.
5. A filter protects the probe from dregs and water
6. IP67 waterproof standard
7. Installation and configuration software on PC through a Connection Device
8. Quick installation
9. The parameters can be conveniently reset and recalibrated with an external calibrator.
10. Used for diesel, gasoline and kerosene level measuring
